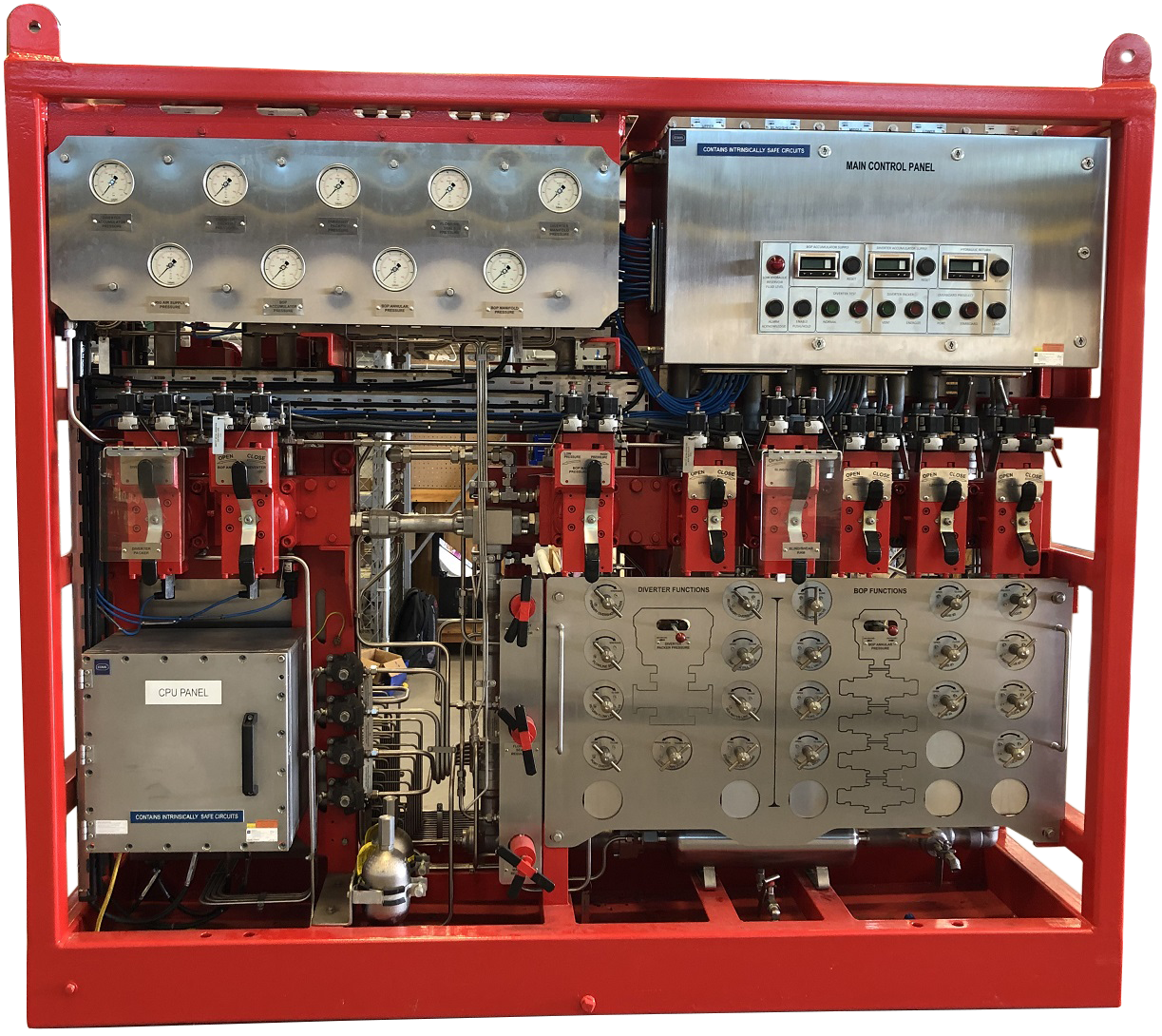

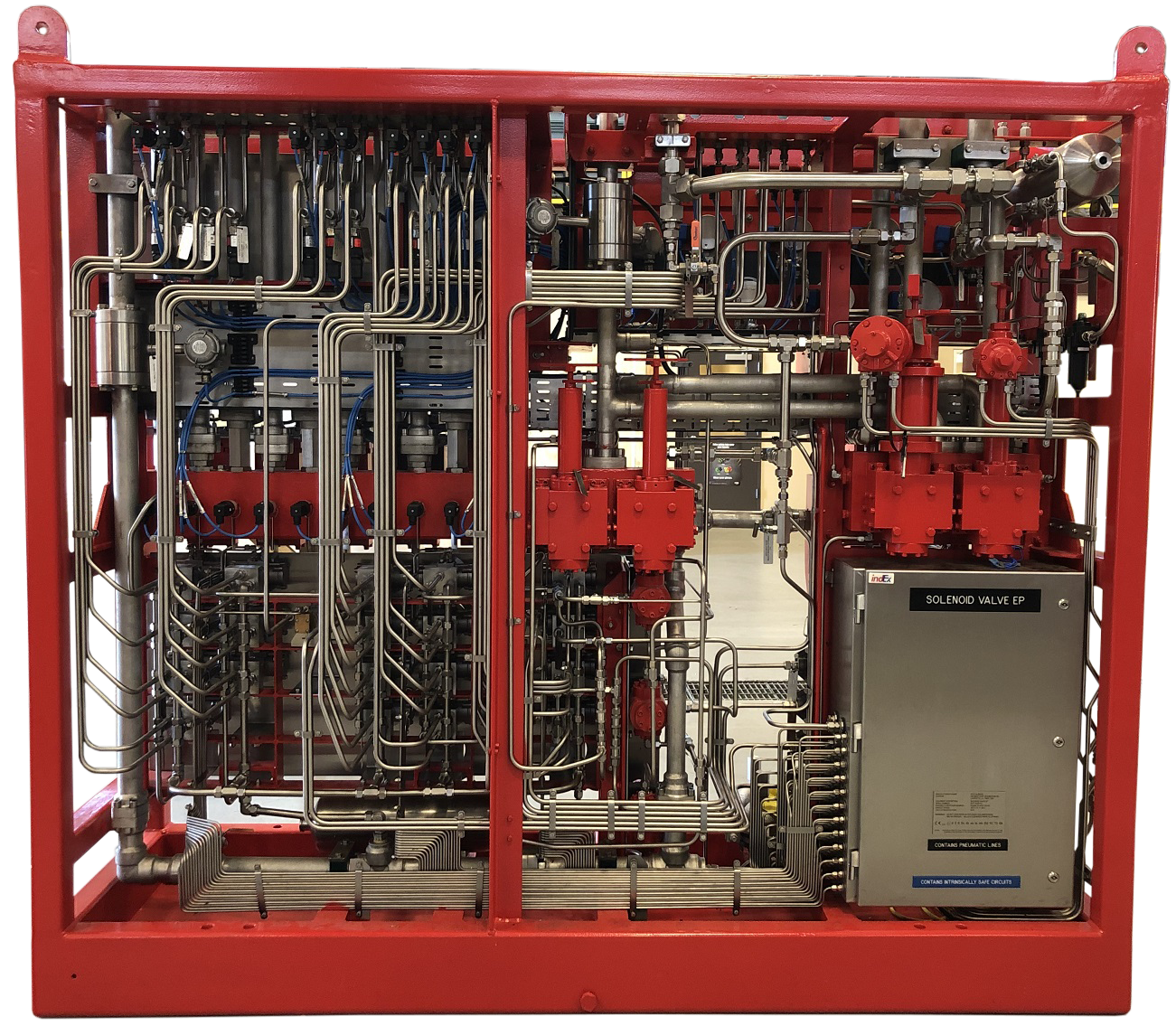

BOP & Diverter Hydraulic Control Manifold

Project Description: BOP & Diverter Hydraulic Control Manifold

Project Overview: Designed to operate a 18-3/4” - 15K BOP Stack Diverter

Specs:

• Footprint: 8’-8” L x 2’6” W x 7’-8 5/8” H
• Design Pressure: 5,000 psi
• Function Count:
• (3) 1-1/2 Functions
• (4) 1” Functions
• (20) Panel Mounted Functions

Key Design Features:

• Compact design = reduced footprint of similar systems
• Integrated Manifold
• Combination of control valves, actuators, solenoid valves, pressure switches and regulators integrated into a single valve manifold
• Allows for interchangeability between 1” a 1 1/2” control valves

• Maintenance
• Valve bodies and regulators can be easily accessed for removal or maintenance

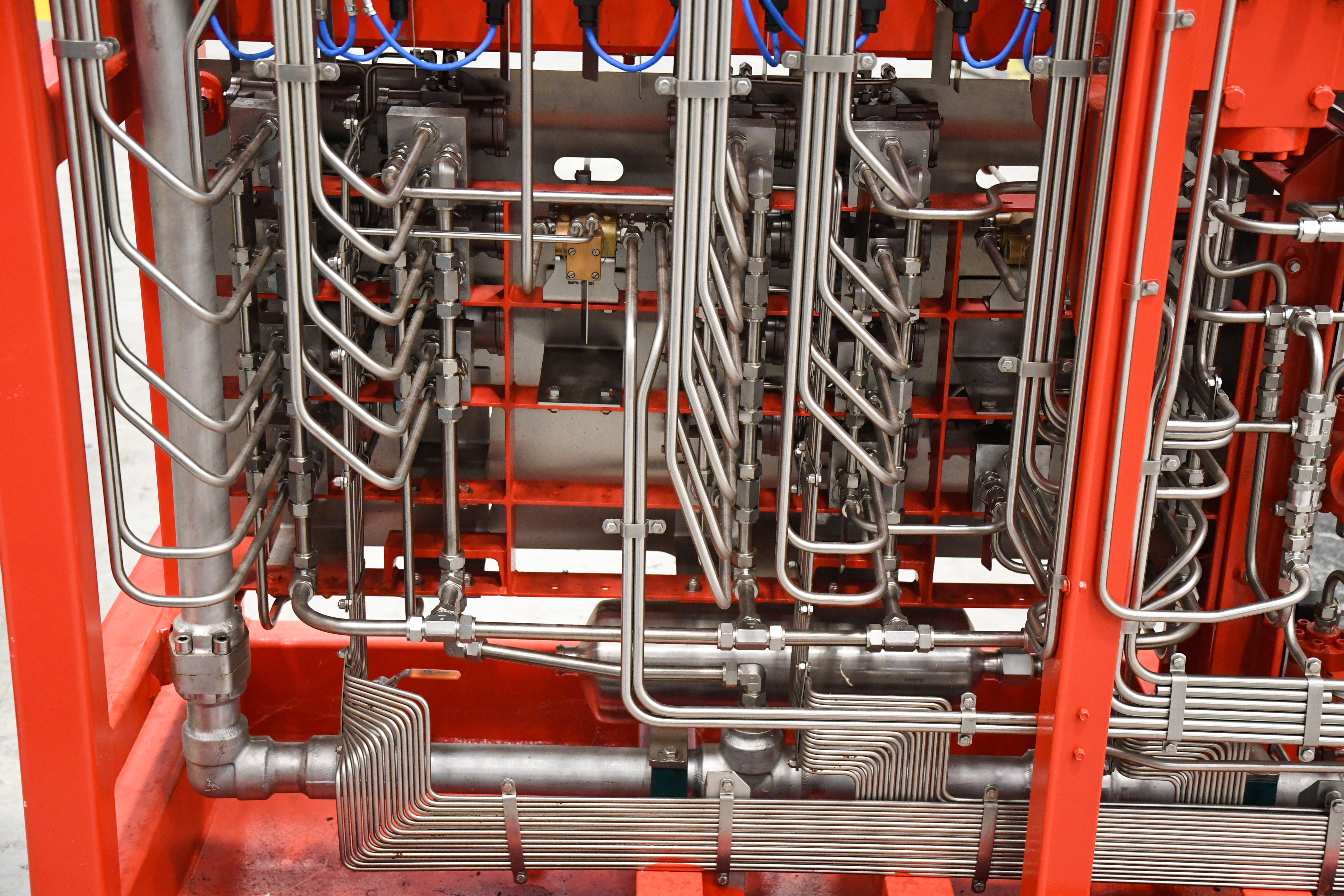

• Manifold porting eliminates tubing required for sensing lines, which reduces leak paths

• Intrinsically Safe DesignIS remote I/O and end devices simplify installation and maintenance
• Utilizes 5,000 psi incoming pressure and regulates to required pressures for BOP/Diverter circuits
• Configurable valve panel assembly for multiple ¼” and ½” control valve arrangements
• Diverter automatic sequence via PLC, eliminating pneumatic logic in similar systems
• ATEX Zone 1 IIB T3 Area Classification

Project Applicable Standards:

• API 16D
• ASME B31.3
• CE (including 2014/34/EU)
• DNVGL-OS-E101
• IEC 61892
• NORSOK D-001 / E-001 / Z-010/ S-002 / M-501
