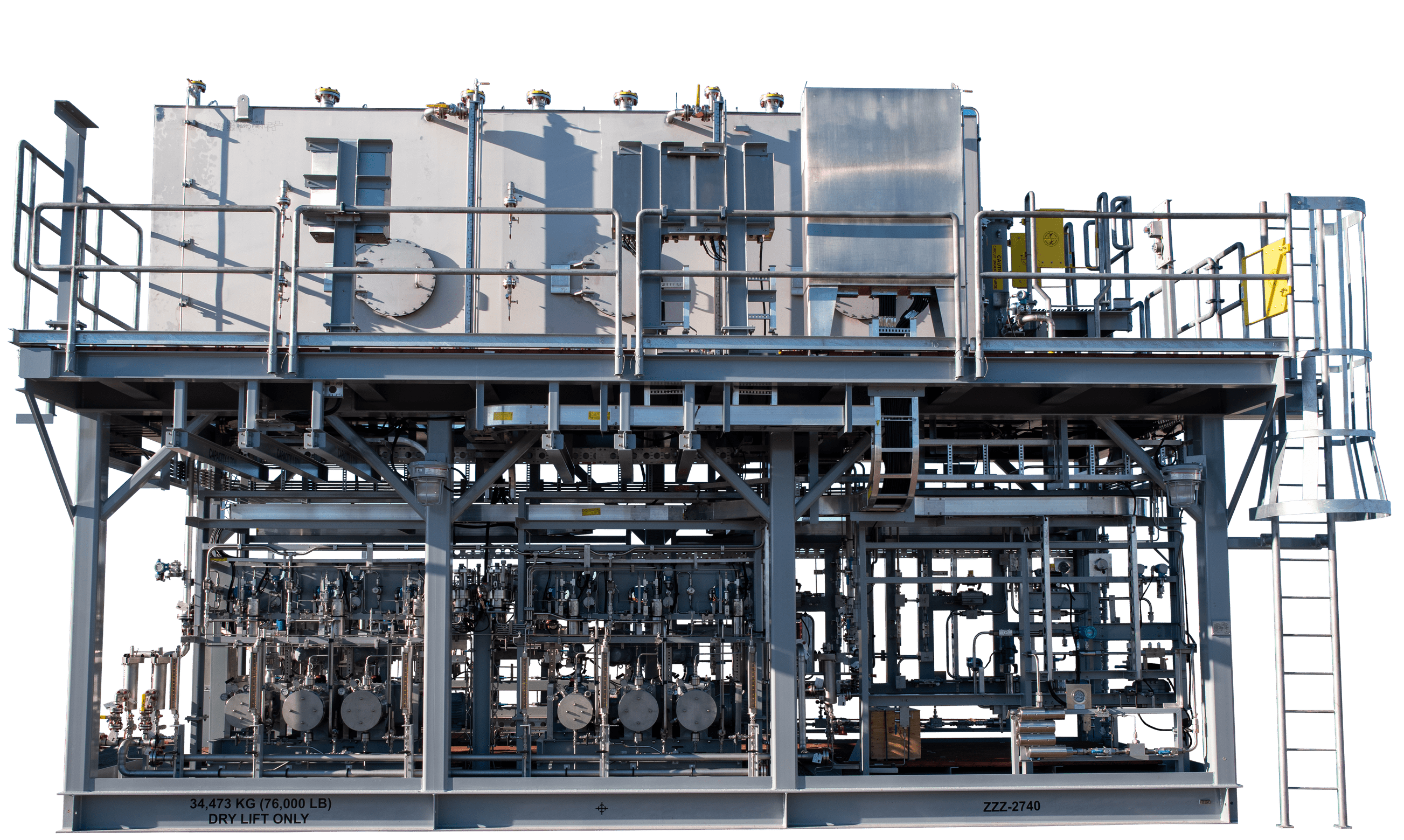

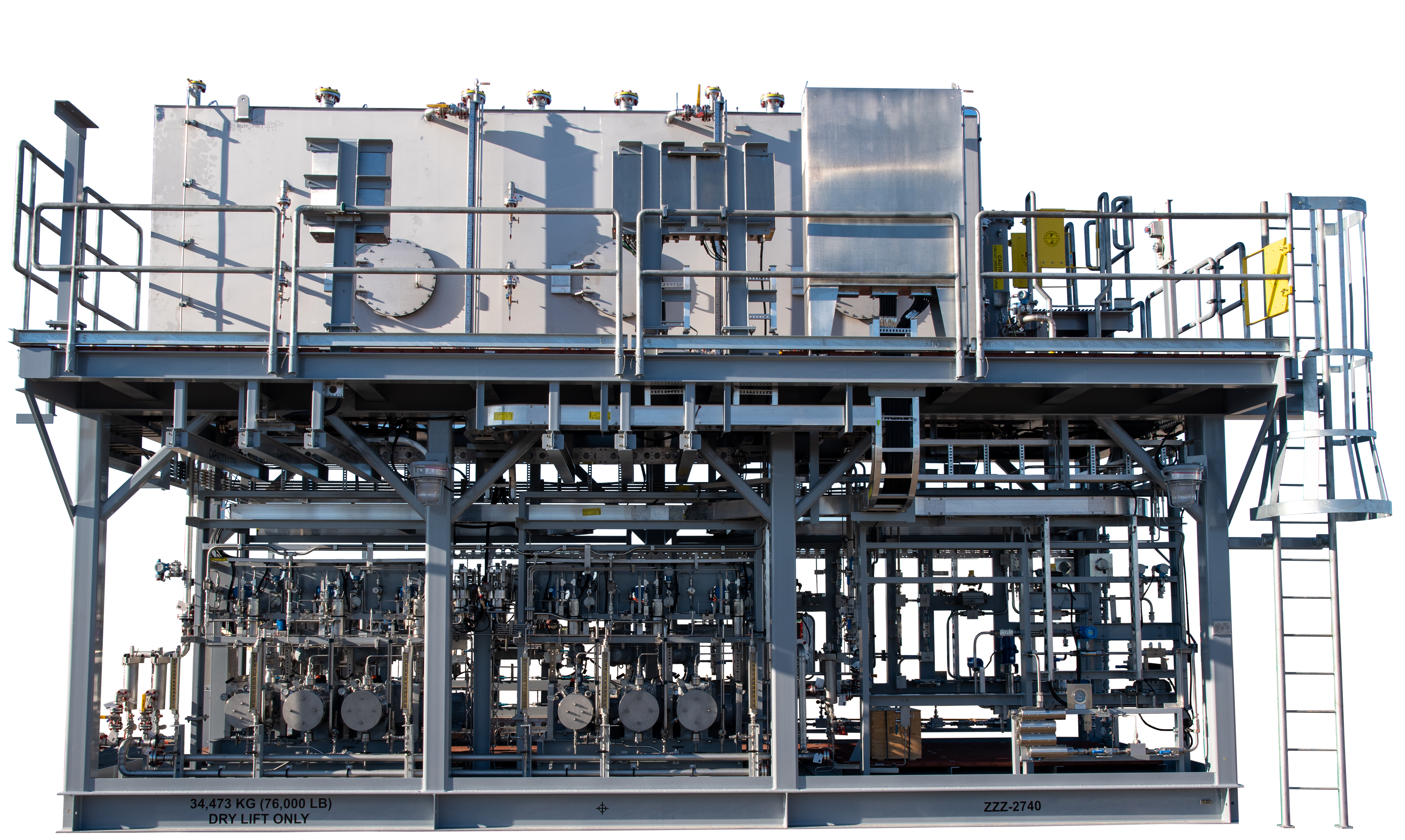

Subsea Chemical Injection Skid

Project Description: Subsea Chemical Injection Skid

Project Overview: Multi-level package designed to provide chemical injection to multiple subsea wells


Footprint: 35’-0” L x 14’-1” W x 22’-5” H
Design Pressure: 10,000 psi

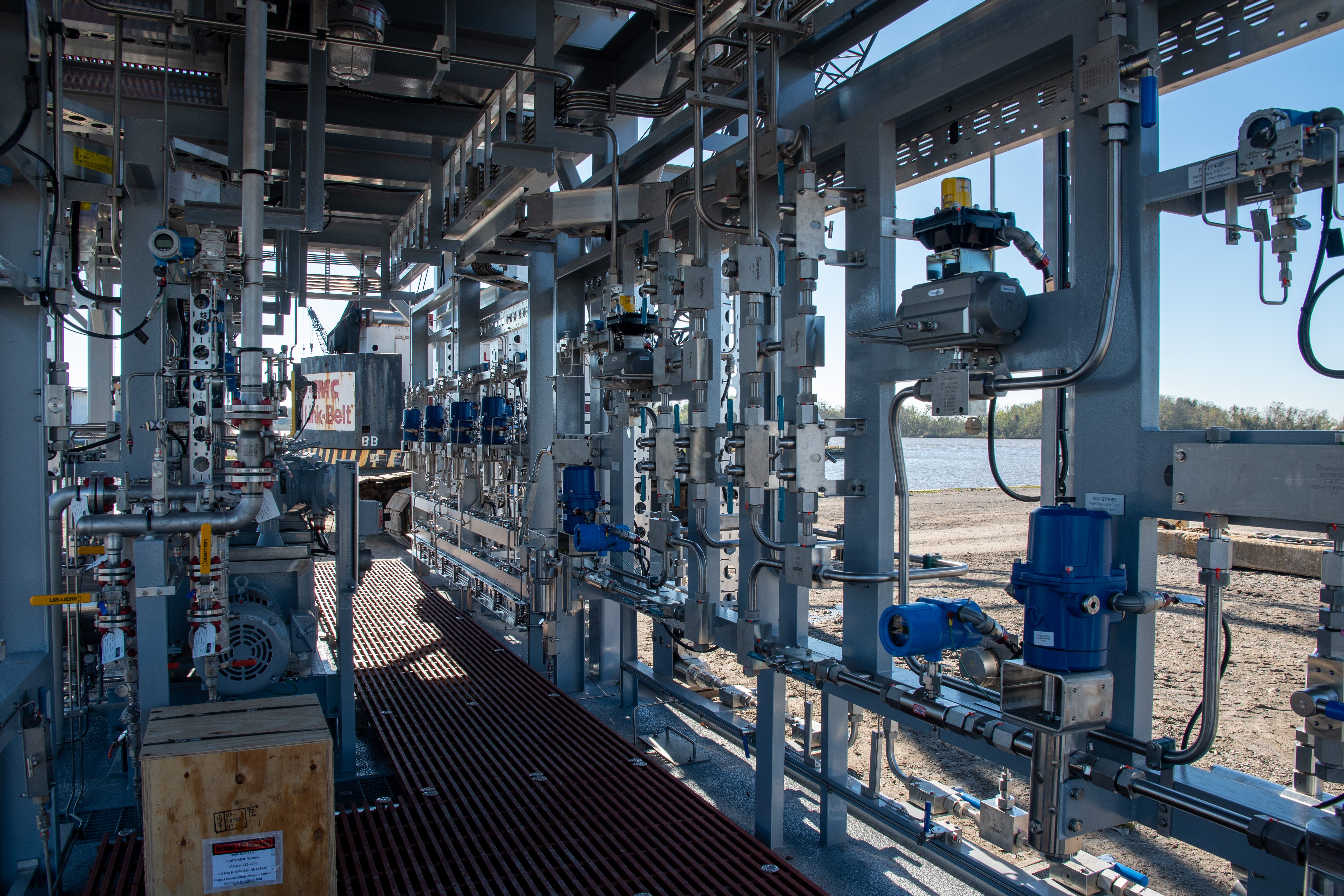

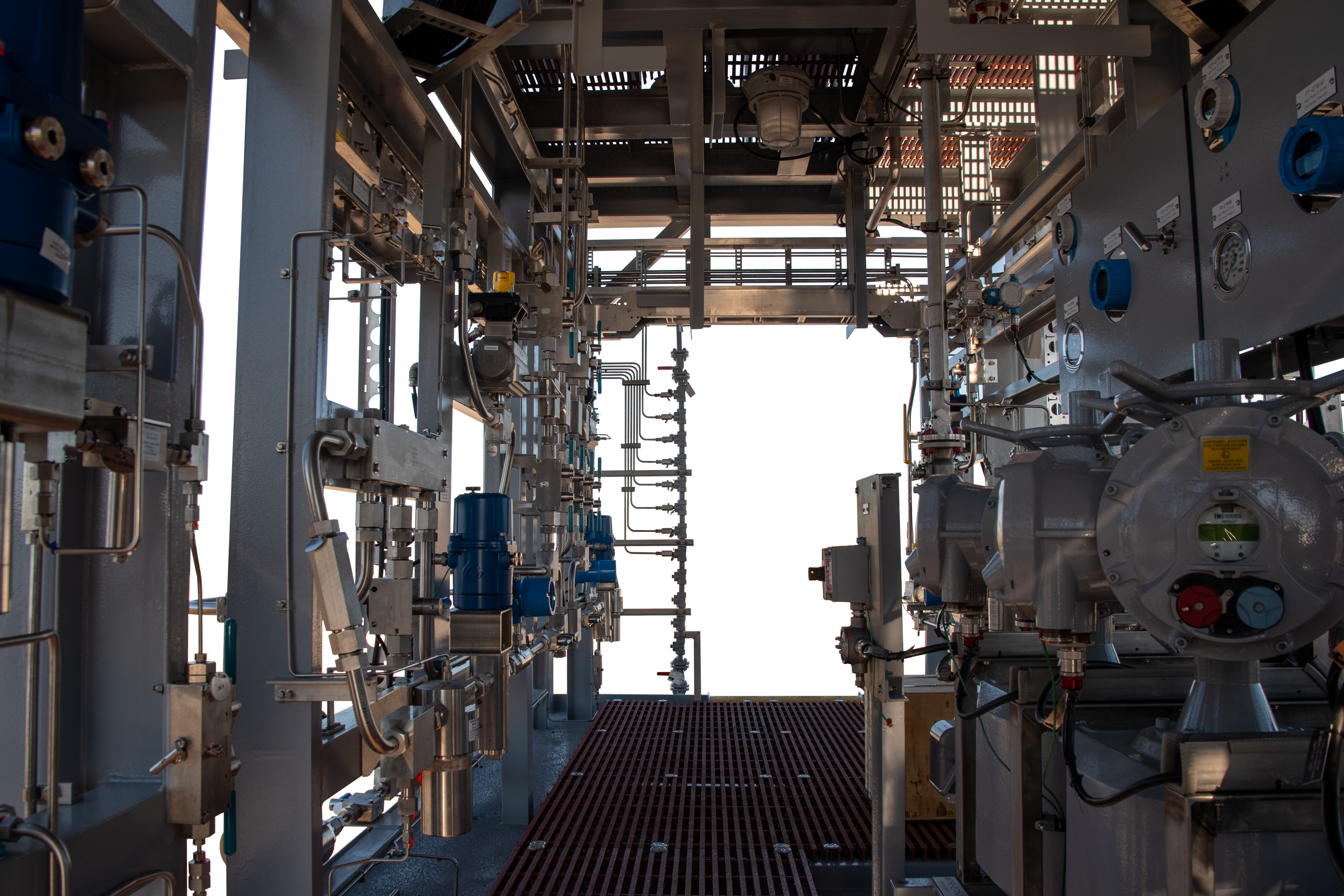

Bottom Deck

  • Two (2) electric driven API-675 quad-pump chemical injection packages, each complete with electric stroke rate adjustment
  • All required components required to maintain the correct chemical flowrate and pressures being supplied to the TUTA

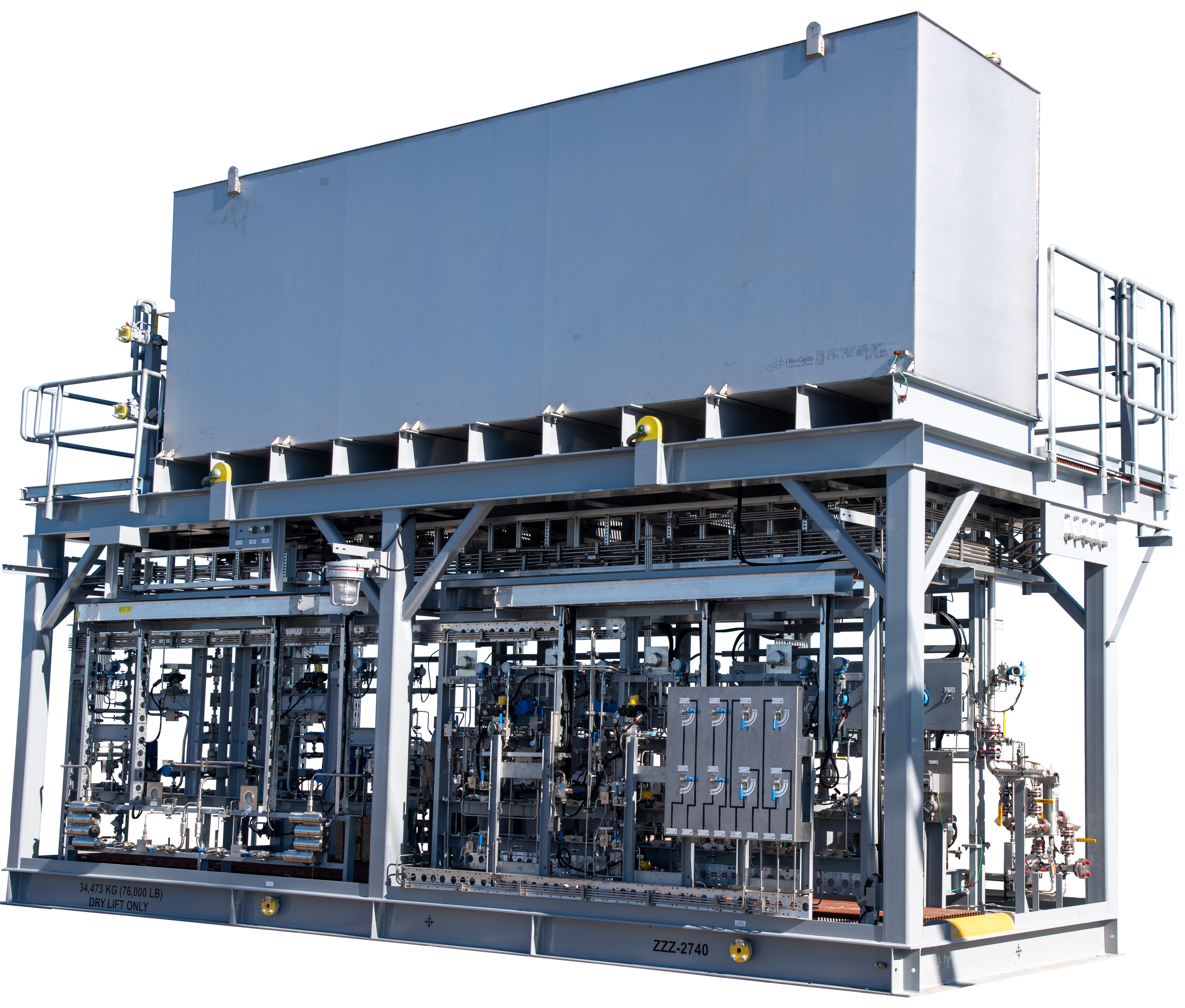

Upper Deck

  • 3 compartment 316 SS chemical storage tank with 7,220 gallons of total useable volume
  • Electrical enclosures for control and functionality of the SCIS

Key Design Features:

  • Automatic pump stroke rate adjustment
  • Automated control valves with limit switches for position feedback
  • Class I Division 2 Area Classification

Project Applicable Standards:

  • API RP 14F
  • NFPA 70
  • OSHA 29 CFR-1910
  • API-675
