Test/Flushing HPU

Project Description: Test/Flushing HPU

Project Overview: Designed for testing and flushing utilizing either stored fluid or clean water

Specs:

• Footprint: 6’-6” W x 6’-0” L x 6’-11” H
• Design Pressure
• LP Test/Flushing Circuit: 6,000 psi
• LP Water Test Circuit: 6,000 psi
• HP Test/Flushing Circuit: 22,000 psi
• HP Water Test Circuit: 22,000 psi
• Hydraulic Reservoir
  • Supply - 55 gallon capacity
  • Return - 55 gallon capacity
• Recirculation / fill circuit

Key Design Features:

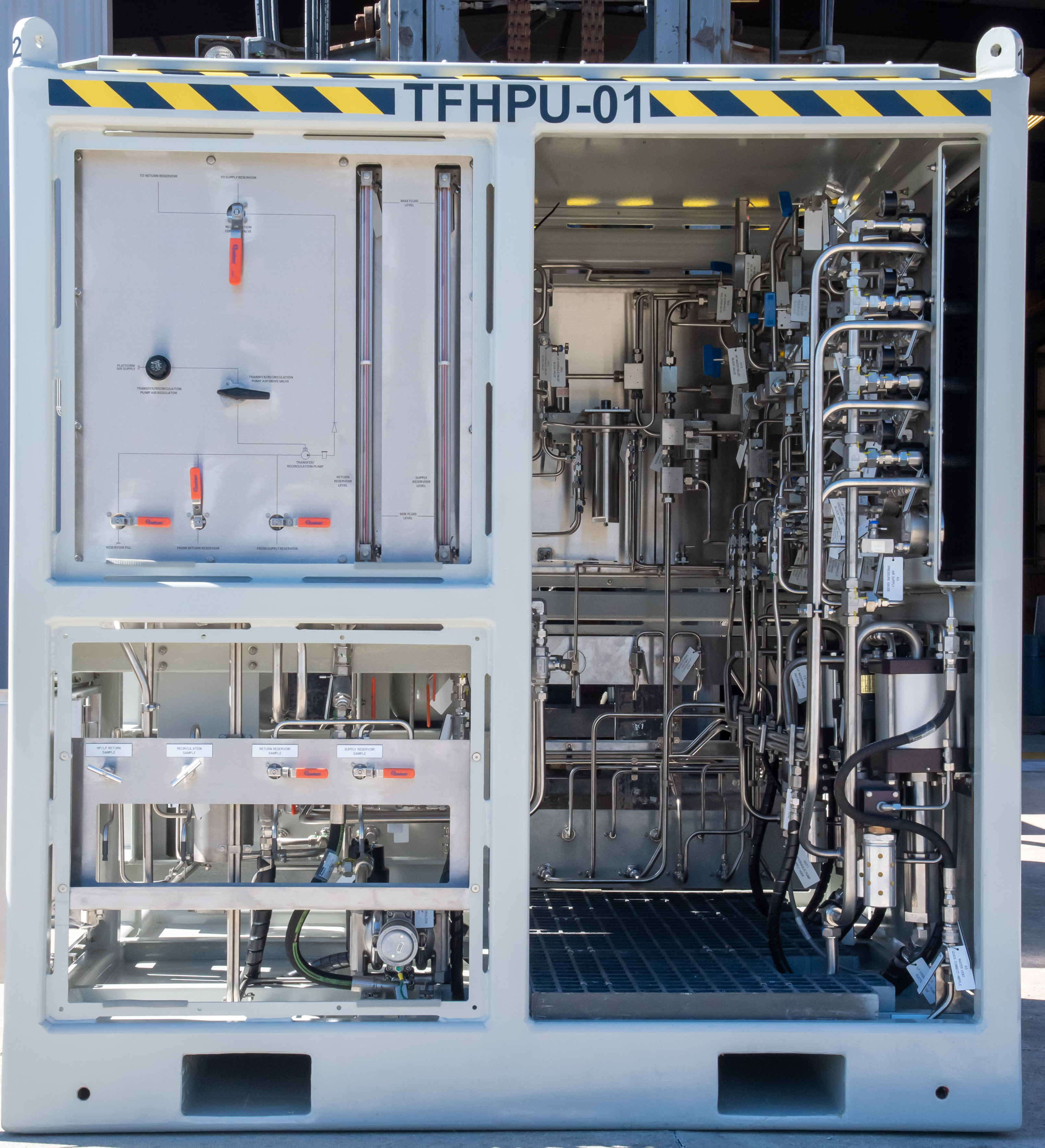

• Each of the (4) independent circuits feature separate pumps, accumulators, and controls

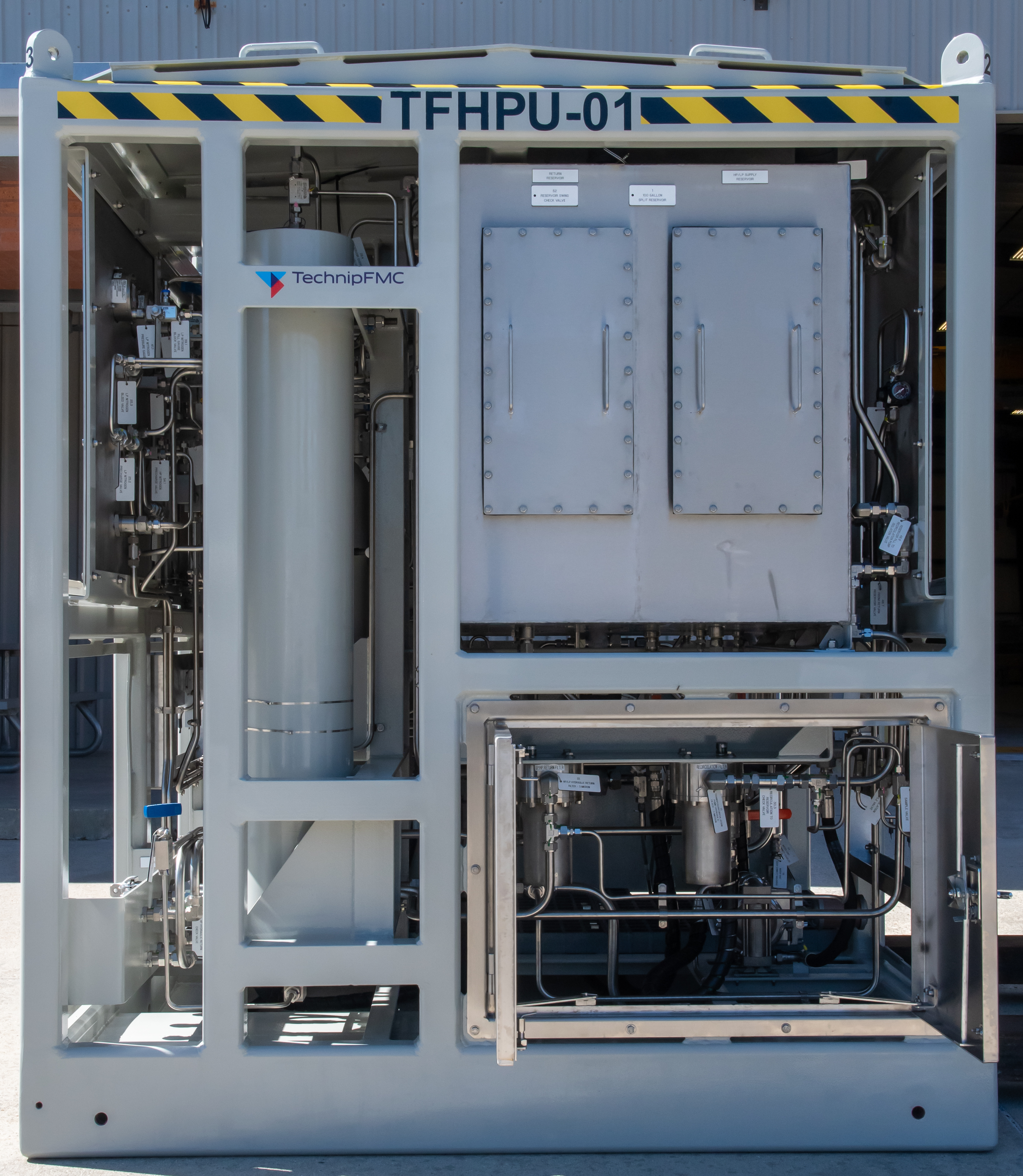

• LP and HP Test/Flushing Circuits each have (1) dedicated accumulator bottle
• Designed with the ability to add on controls for different applications

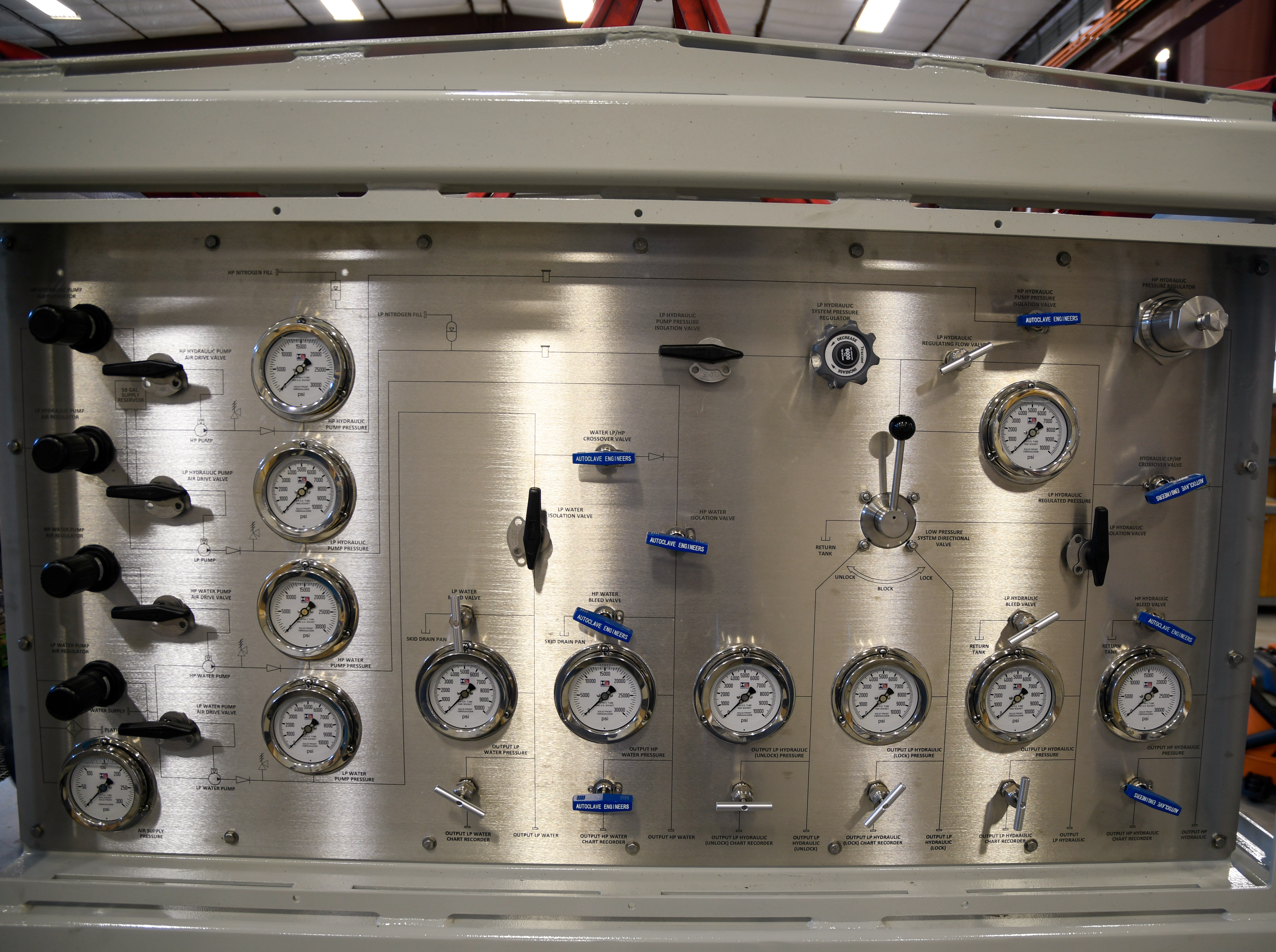

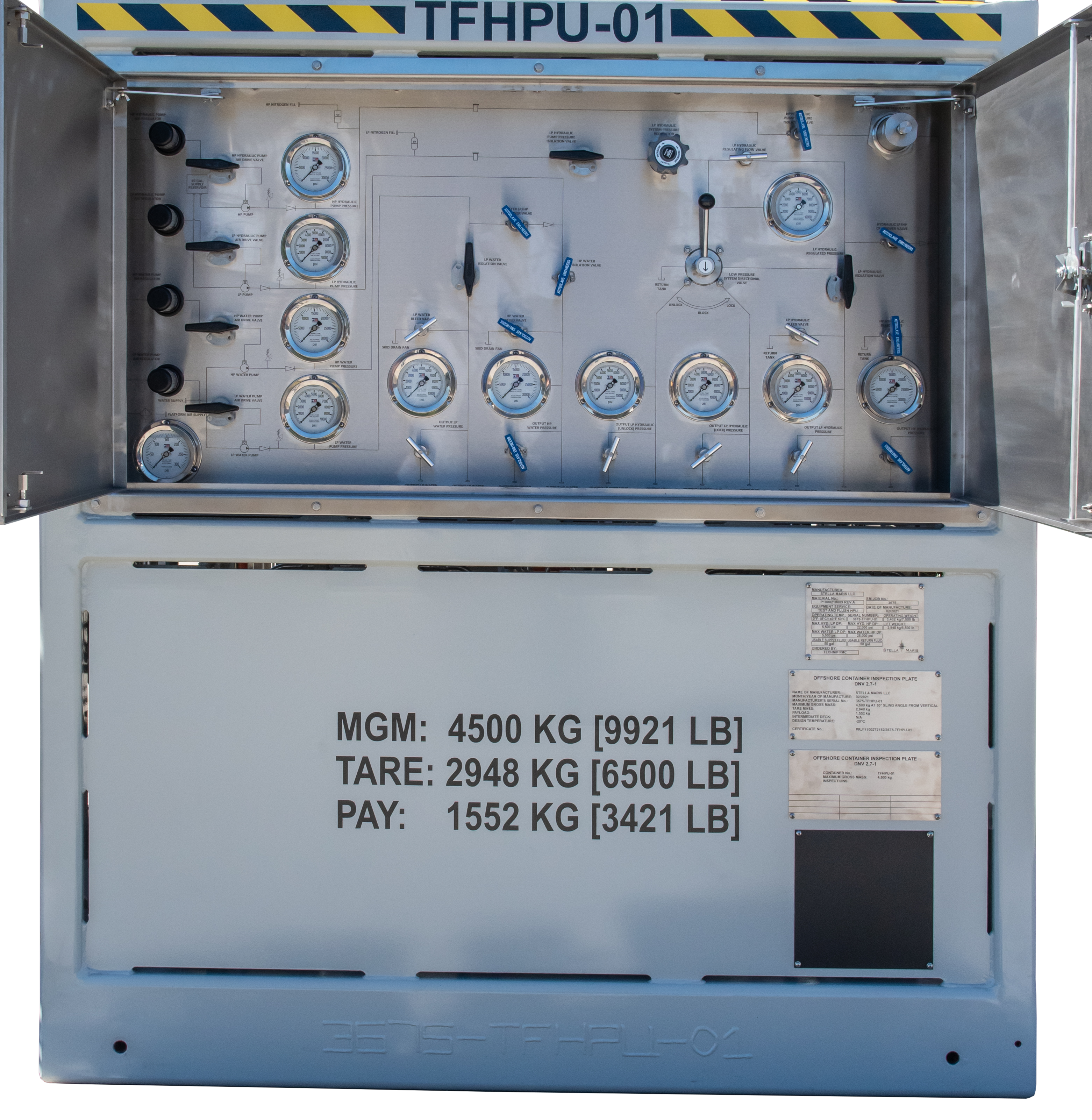

• Etched control panels for ease of operation and maintenance
• Pneumatic motor driven hydraulic/water pumps
• No electric components
• Lifting frame certified to DNV 2.7-1

Project Applicable Standards:

• API 16D
• API 17F
• API 520
• ASTM A269
• AWS D1.1
• ASTM F1166
• SAE AS4059
• DNVGL-ST-E271
