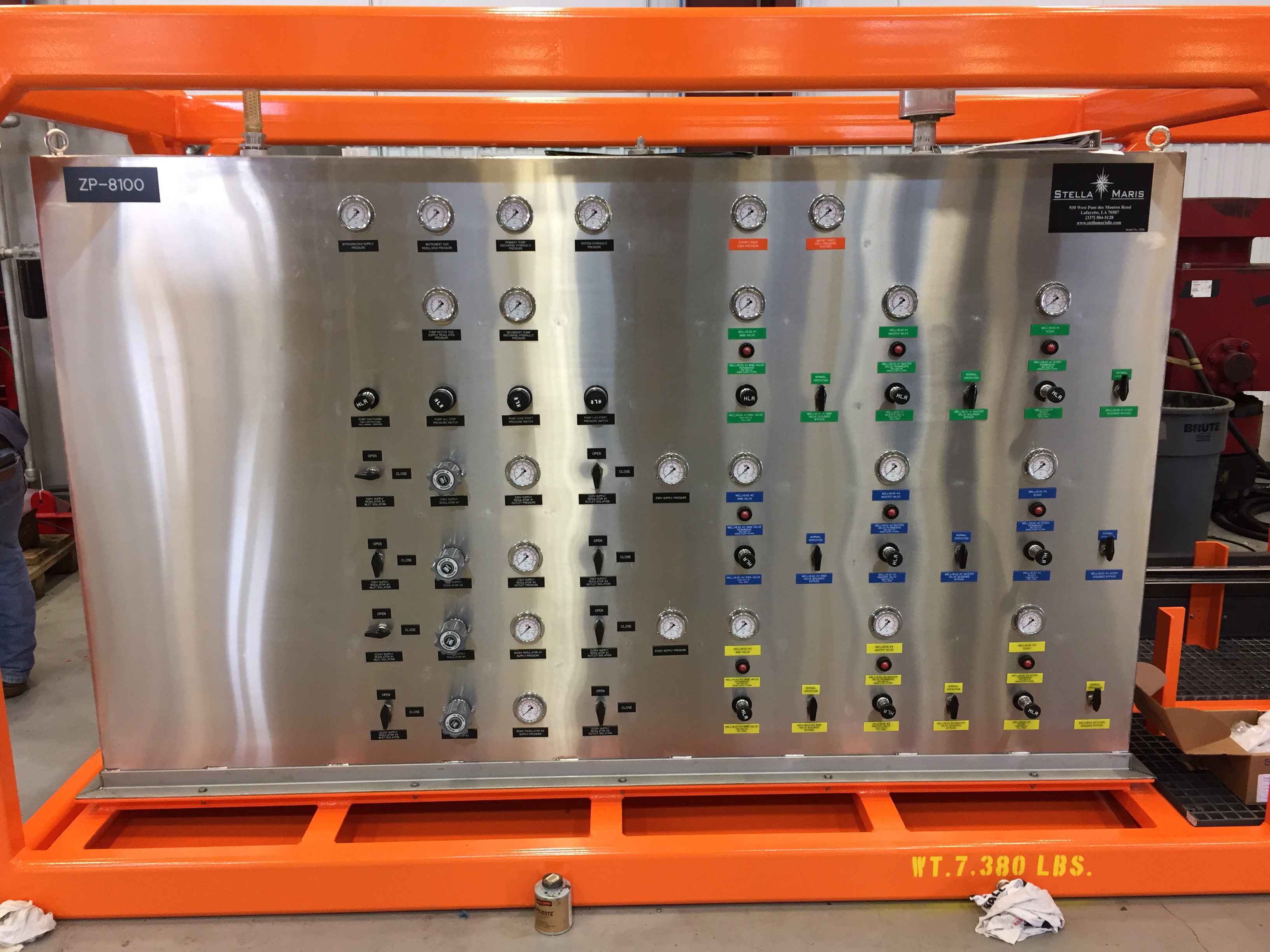

Wellhead Control Panel

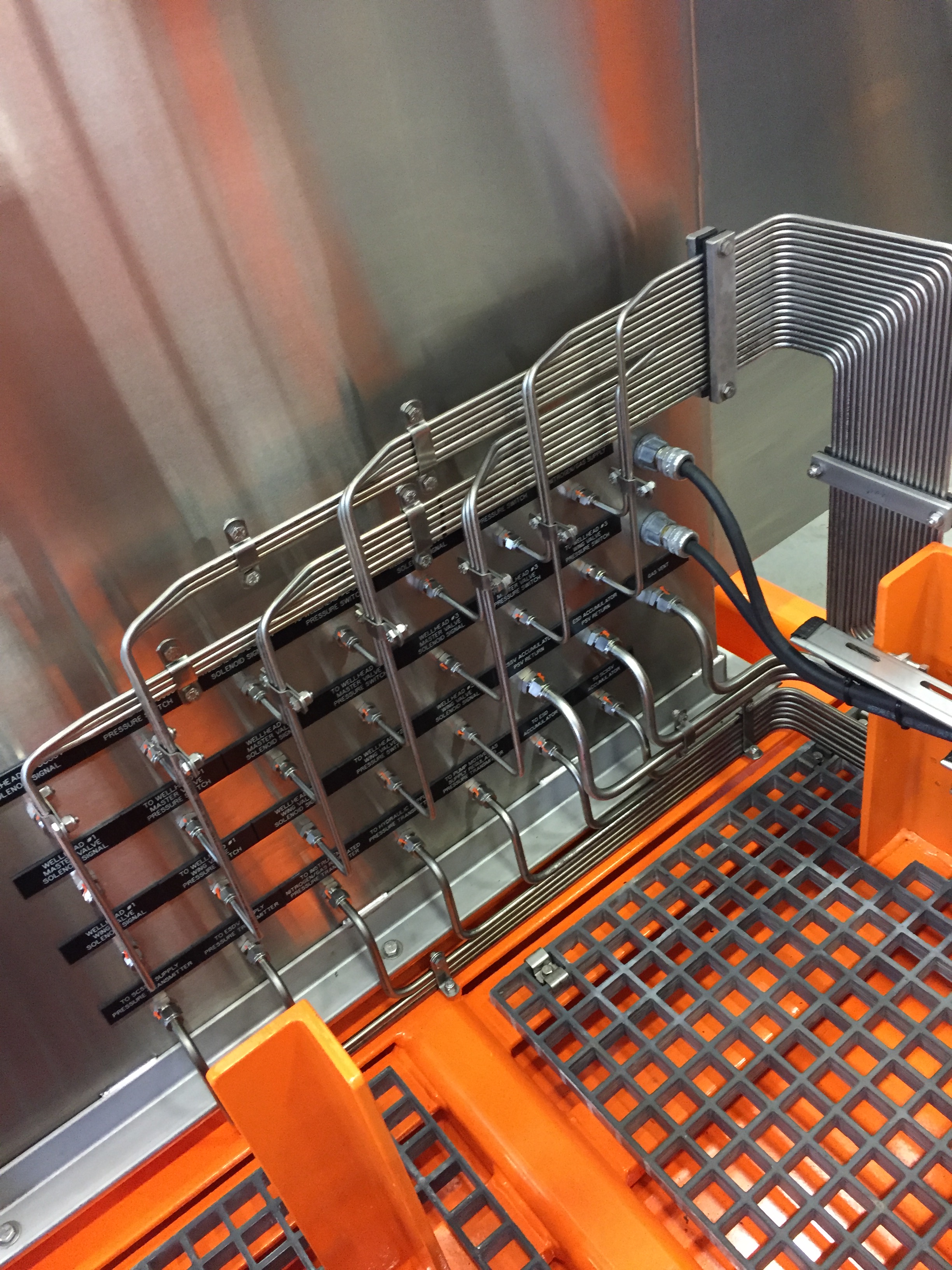

Project Description: Wellhead Control Panel

Project Overview: Designed for use on an offshore, unmanned platform to control 3 wellheads


  • Footprint: 15’-6” L x 5’-0” W x 6’-8” H
  • Design Pressure: 6,000 psi
  • Hydraulic Reservoir
    • Supply - 20 gallon capacity
    • Return - 5 gallon capacity

Key Design Features:

  • Utilizes the platform’s process gas as driver for the two 6.5K PSI rated hydraulic pumps
  • Used to control the Master Valve, Wing Valve, & SCSSV for three Wellheads (9 total valves) with provisions for a 4th future well
  • ESD control circuits for actuation of Export & Import Riser ESDVs via pneumatically piloted interface valves

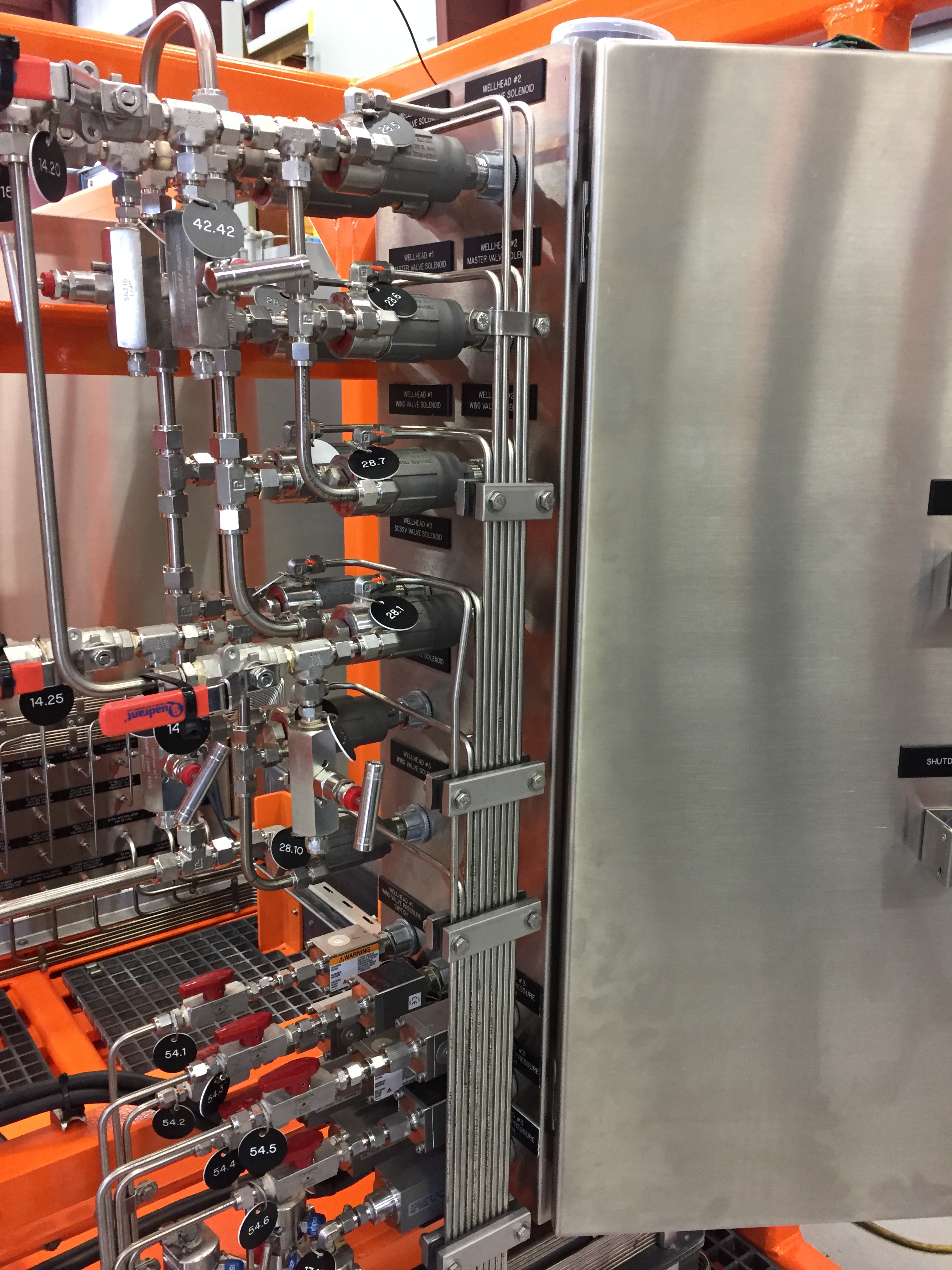

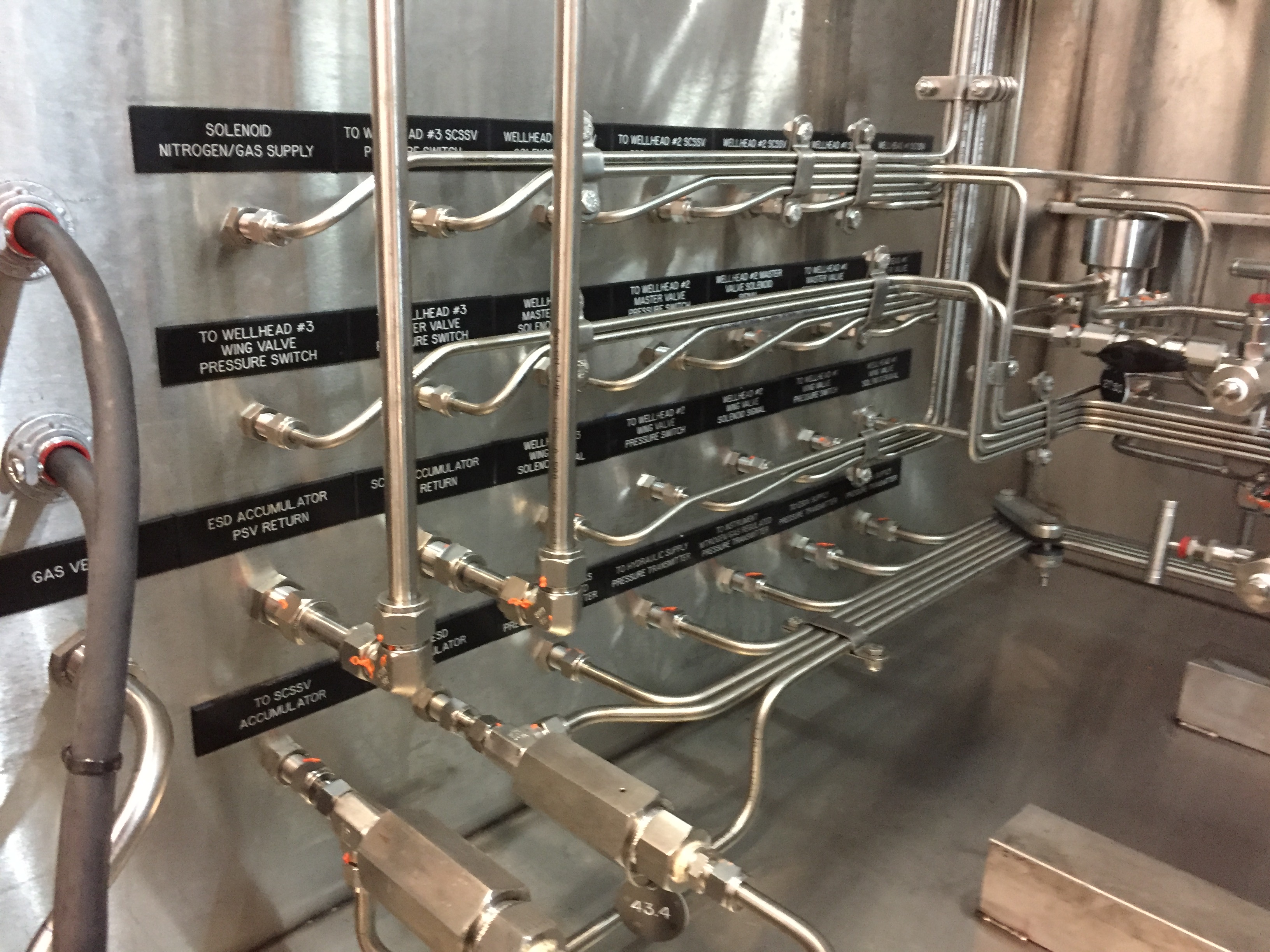

  • Double block & bleed methodology utilized throughout for component isolation & maintenance
  • Includes SIS Panel for safety controls & junction box for on-skid instrumentation
  • Class 1 Division 1 hazardous area rated
